OPTIMO – Single Glazed Folding System

SKU: OPTIMO Categories: ,
  1. General Details

    Elegant design for balconies and glazing needs with threshold

    System Features:

    • Patented design that enables long years durability and comfort in use especially suitable for glazing high balconies and threshold applicable spaces
    • Wheel systems designed for silent move

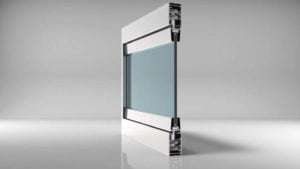

    • Profile design which gives maximum transparency and is robust at the same time
    • Panel exit guide that closes automatically with panel movement makes easier usage with stores has Utility Model Award
    • Effective water discharge from bottom rail
    • Thanks to double latched lock mechanism both on top and bottom rail, enhanced security
    • Ability to mount on every kind of space with angular panel caps
    • Easy to mount wheel systems that has Utility Model Award
    • Profile aesthetic that appeal to modern tastes beside their robust structure
    • At bottom and at top 4 pieces of wheel systems at total
    • Totally integrated, elegantly designed wall side aluminium profiles
    • Enhanced insulation with extra wall side gaskets
    • Aesthetic, different angular, high quality polyamide panel caps
    • Enduring metal accessories

  2. Technical Details
    Maximum system height 2200-2500 mm
    Maximum panel width 600-650 mm.
    Glass thickness 8 mm and 10 mm
    Glass type Tempered/laminated
    System Operation Sliding and folding
    Profile colours (in stock) Anodised, white, press
    Profile cap colour options (in stock) White, grey, black

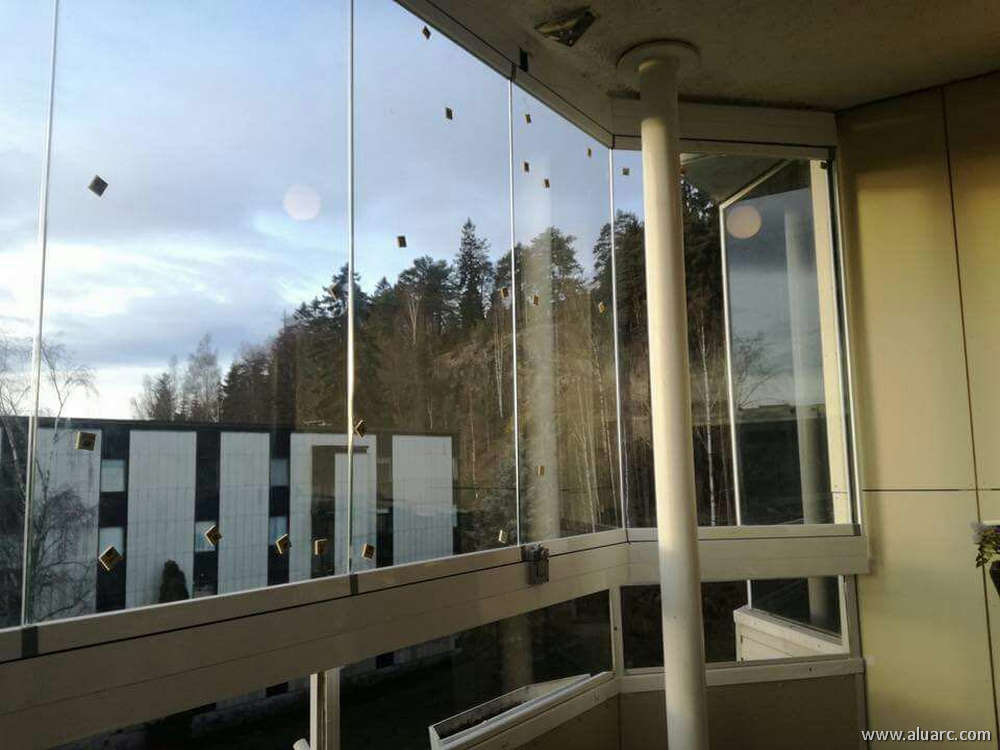

  3. Uses and Benefits Of Movable Glass Systems
    • Enables to create extra spaces and enlarges your living / service spaces and creating shade when needed.
    • Protects from harsh weather conditions, dirt, noise etc. while providing thermal insulation.
    • Reduces heating/cooling expenses of the building by increased insulation and extends building life cycle by reduced corrosion.
    • Increases the security by their locking systems.
    • Easy to clean thanks to folding and sliding panels.
    • Silent and comfortable use with wheel system design.
    • Enables maximum transparency comparing to standard window systems.
    •  Ability to glaze different angular spaces.
